T600 Premium Full Cassette Awning
The premium full-cassette design in the latest brochure, with reinforced arm and front-bar profile references, motorized remote operation and linear arm lighting.
- Premium full-cassette layout
- Reinforced aluminium profile references
- Enclosed fabric and folding arms
- DOOYA motor and remote described
- Linear LED arm lighting described
- Project-specific mounting review
Available for custom quotation. Dimensions, supply configuration and technical specifications are confirmed with your quote. No online ordering is available.
Product Overview
T600 combines enclosed storage with reinforced aluminium profiles. Page 2 lists the large arm at 78.00 × 39.94 mm with a 3.20 mm wall, the small arm at 71.23 × 36.17 mm with a 2.96 mm wall and the front bar at 144.20 × 85.15 mm with a 3.00 mm wall. These are brochure profile references, not certified load ratings. The terrace rendering is an AI concept; actual appearance and the final motor, lighting and mounting package require confirmation.
- Core configuration
- Enclosing full cassette with folding arms. Motorized remote operation is described. The exact motor, remote and mounting components are specified in the quotation.
- Options & selections
- LED arm lighting is optional. Fabric, color, finish and project dimensions are selections to confirm. Illustrations with lighting do not mean LED is included in every order.
Structure & Technical References

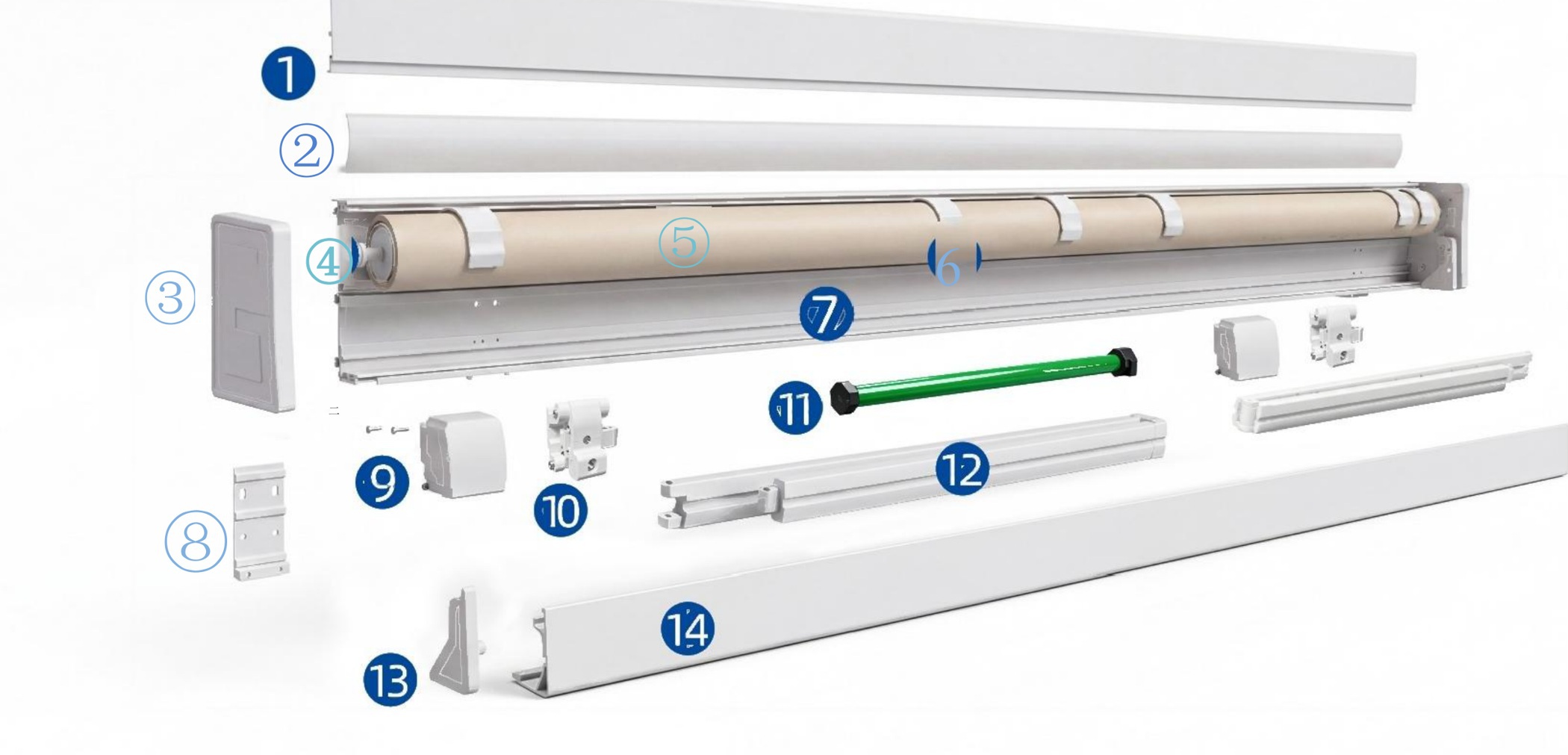

The shared full-cassette exploded layout and T600 profile references below show the folding arms, front bar and related structure. Confirm the quoted configuration before ordering.

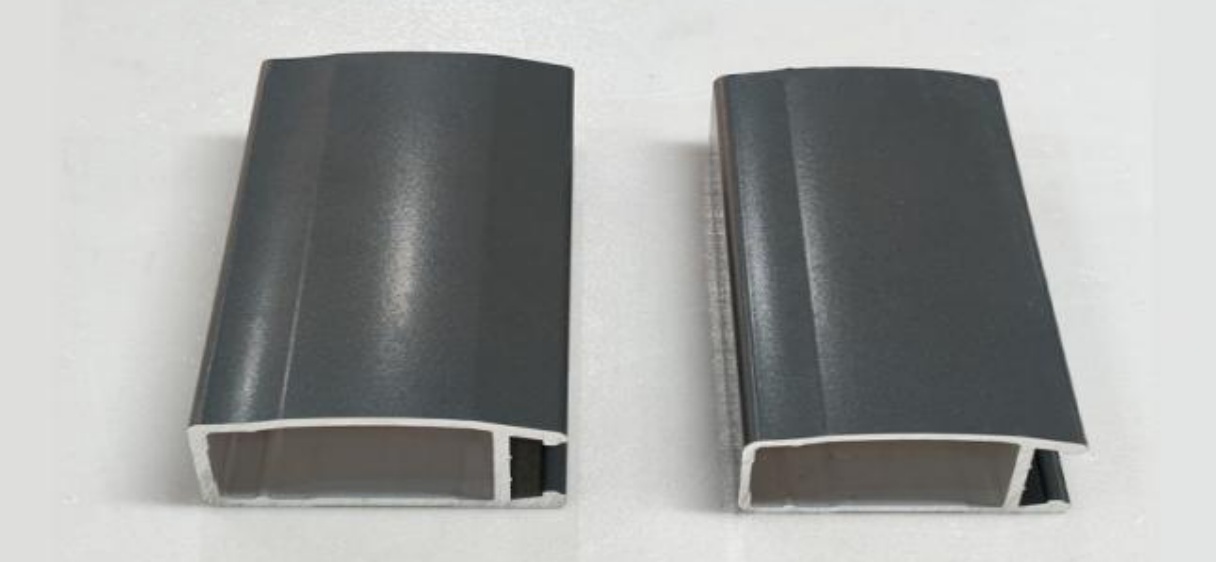

- Large folding arm section / wall
- 78.00 × 39.94 mm / 3.20 mm
Component cross-section / wall thickness; confirm the final configuration.
- Small folding arm section / wall
- 71.23 × 36.17 mm / 2.96 mm
Component cross-section / wall thickness; confirm the final configuration.
- Front bar section / wall
- 144.20 × 85.15 mm / 3.00 mm
Component cross-section / wall thickness; confirm the final configuration.
- Housing and operation
- Full cassette; DOOYA motor and linear arm LED described
Brochure description; exact motor, controller and included lighting package unconfirmed.
The large-arm, small-arm and front-bar values are component cross-section references (width × height / wall thickness), not complete-awning dimensions or overall width and projection.
Fabric, Finish & Controls
Swatches are references. Confirm the actual fabric brand, composition, code, sample, frame finish and electrical package with the quotation.
- Fabric
- SD and imported fabric swatches are shown on page 8. Confirm brand, composition, code and a current physical sample.
- Frame finish
- Moonlight grey and white finish references; final finish and local corrosion suitability require confirmation.
- Controls
- DOOYA motor and remote described; confirm the actual motor, voltage, frequency, wiring and LED controller.
Sizes & Custom Configuration
Send your opening width, preferred projection, mounting height, building surface, location and quantity. These inputs allow the quotation team to confirm a compatible awning configuration.
T600 width, projection, working angle, mounting height, clearance and anchoring are project-specific. Confirm the final motor voltage and frequency, wiring, LED package and controller compatibility, fabric performance, finish, tested wind limits, applicable conformity documents and written warranty terms for the quoted configuration. Listed standards are references, not proof of certification; this awning is not an all-weather roof.
T-series shared reference only — not a final ordering commitment
Brochure page 9 lists widths 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 m and nominal projections1.5, 2, 2.5, 3, 3.5 m. These are T-series planning references only, not confirmed T600 order sizes or every permitted width/projection pairing. Working angle can reduce actual projection; final dimensions and configuration require project approval.
Residential & Commercial Applications
Plan adjustable shade for patios, decks, outdoor dining areas and commercial terraces. Confirm the mounting conditions, clearance and exposure for each opening.
FAQ
Is T600 a full-cassette awning?
Yes. The T series uses an enclosing cassette for the retracted fabric, folding arms and drive mechanism.
Can I order online?
This product is available for quotation inquiries only. There is no online checkout. Final dimensions, configuration, availability and price are confirmed in the quotation.
What is included in the T200 awning?
The T200 combines a rounded full cassette, chain-tensioned folding arms, wall-mounted supports, a front-bar drainage channel and a DOOYA motor with remote control. LED arm lighting is an available option.
What should I provide for a quotation?
Share the opening width, desired projection, mounting height, wall or support surface, project location and quantity. Add a site photo or drawing to help plan the bracket positions and awning clearance.
