Folding Arm Profile Details

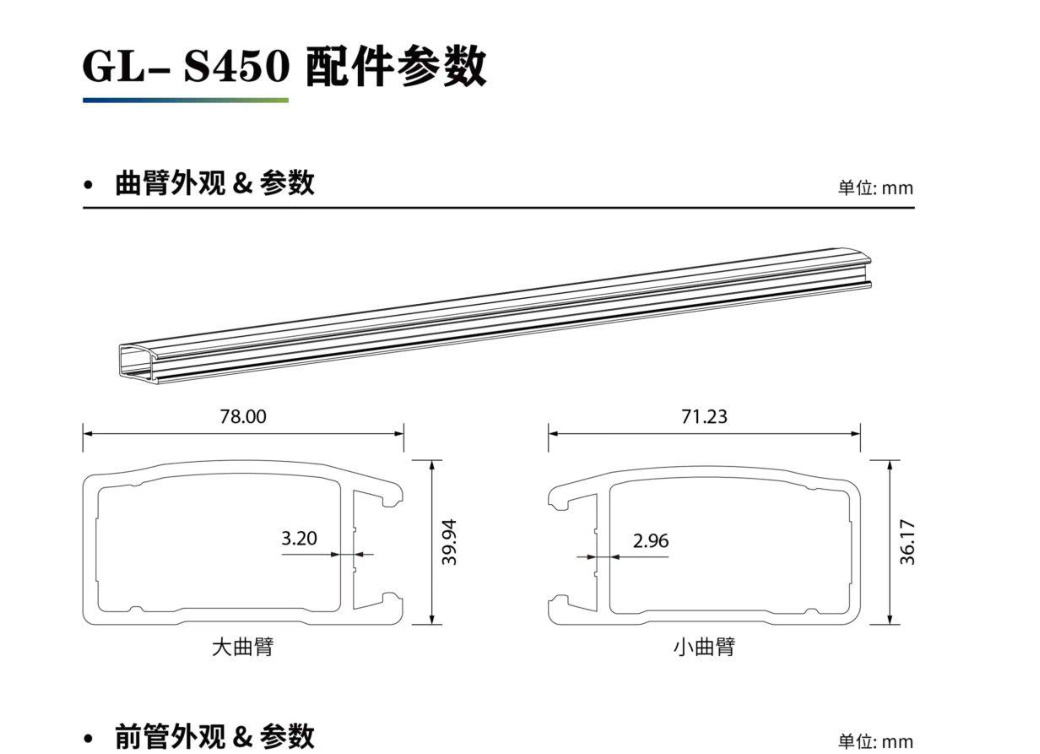

The supplied GL-S450 profile drawing shows the large and small folding-arm sections with their indicated dimensions and wall thicknesses. Source: supplied PDF page 7.
ModelGL-S450

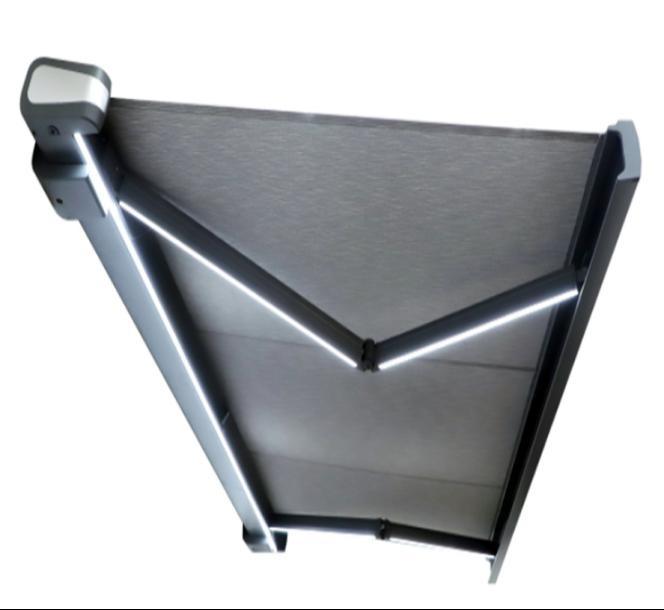

GL-S450 Full Cassette Awning
A full cassette motorized awning model available for project review and quotation.
- Full cassette configuration
- Aluminum folding-arm profiles
- Front bar and mounting components shown in supplied drawings
- Project-specific size confirmation
Dimensions and options are confirmed against the selected product configuration.
Overview
GL-S450 Full Cassette Design

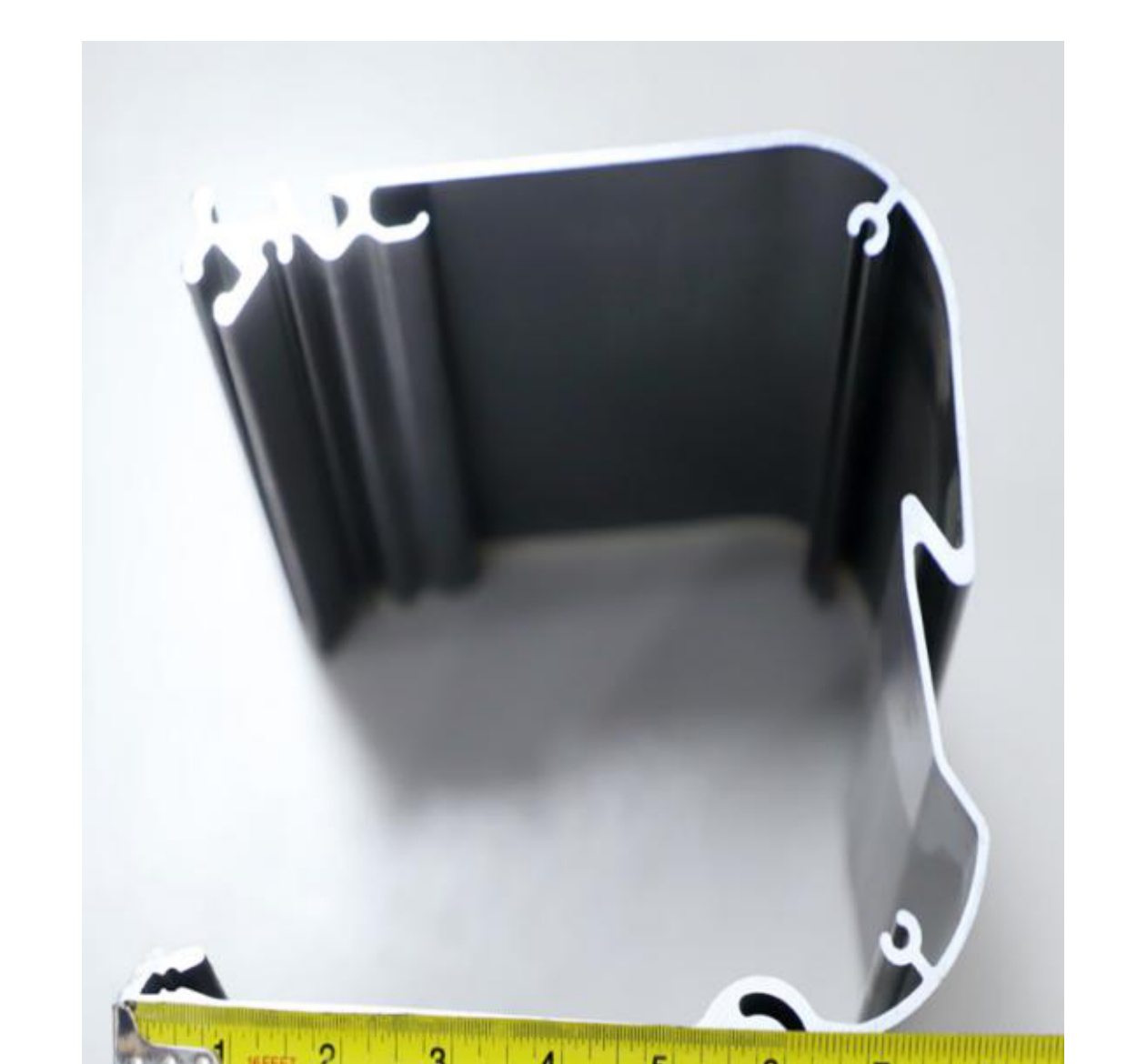

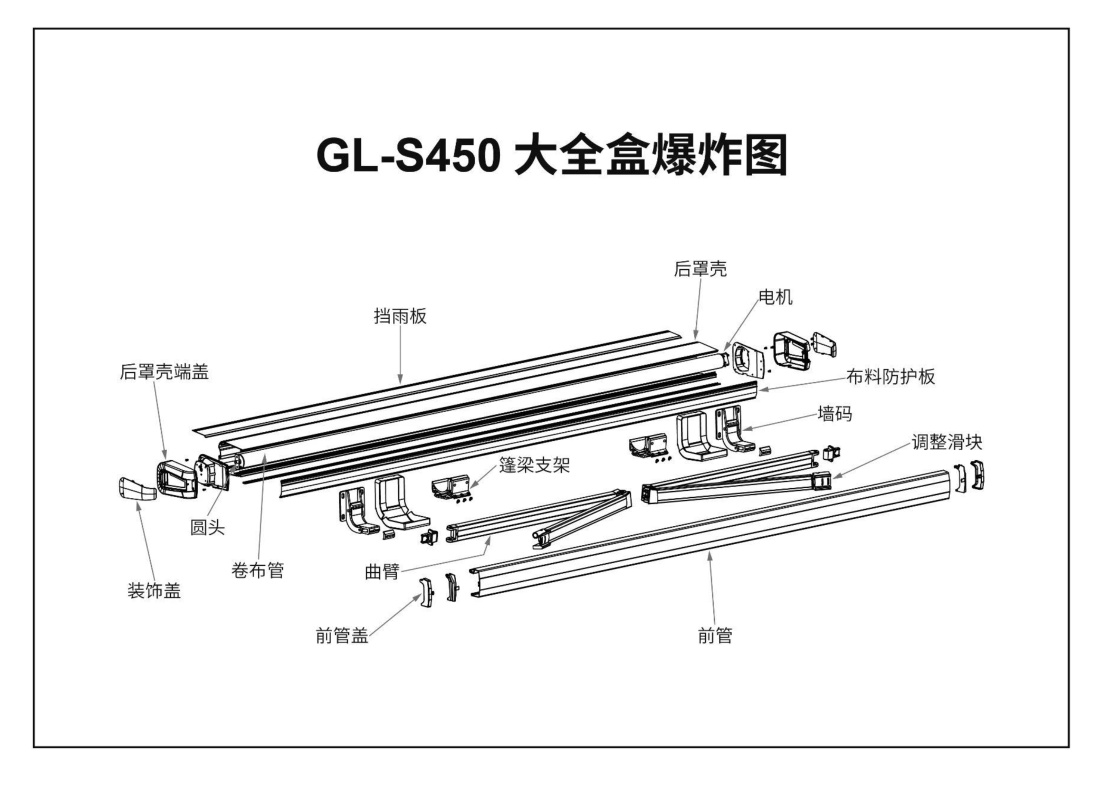

The GL-S450 is documented as a full cassette awning with aluminum folding-arm, front-bar and cassette profiles. Its supplied accessory drawings show the profile sections, mounting relationships and exploded assembly; the complete awning configuration is confirmed against the project requirements.
Frame, cassette and arm details
- Full cassette, folding-arm and front-bar construction are represented in the supplied GL-S450 drawings.
- Mounting and assembly components are shown in the exploded and installation diagrams; confirm the fixing arrangement for the actual building.
Technical specifications
GL-S450 Technical Specifications
Structure & Materials
- Product Model
- GL-S450
- Cassette Type
- Full cassette configuration
- Aluminum Profile Structure
- Large and small folding-arm profiles, front bar profile and cassette sections are documented in the supplied drawings.
- Front Bar Construction
- Front bar profile and inner assembly views are shown in the supplied GL-S450 material.
Configuration Information
- Mounting and Assembly Components
- Mounting relationships and an exploded assembly are shown in the supplied GL-S450 drawings (PDF page 8).
- Available Width / Projection
- GL-S450 profile sections are 78.00 x 39.94 mm and 71.23 x 36.17 mm; confirm the opening and projection for quotation.
- Motorized Configuration
- The product is presented as motorized; the applicable motor and control package must be confirmed for the selected configuration.
Profile Dimensions
| Component | Profile dimensions | Wall thickness | Source |
|---|---|---|---|
| Large Folding Arm | 78.00 × 39.94 mm | 3.20 mm | Supplied PDF page 7 |
| Small Folding Arm | 71.23 × 36.17 mm | 2.96 mm | Supplied PDF page 7 |
| Front Bar | 144.20 × 85.15 mm | 3.00 mm | Supplied PDF page 7 |
These measurements refer to individual component profiles, not the overall awning width or projection.
Source note:GL-S450 model and product image are retained from the supplied project material. Profile dimensions and indicated wall thicknesses are transcribed from the supplied 重型全盒产品图 PDF, page 7; mounting and exploded assembly references are from page 8. GL-S450 width and projection are selected as a compatible pair for the opening.
Sizes and configurations
GL-S450 Dimensions & Custom Configuration
The reviewed GL-S450 source documents profile sections and assembly relationships, but does not provide a verified complete width and projection matrix. Confirm the opening and selected configuration before quotation.
Awning Width
Provide the opening width, wall space and nearby obstructions so the applicable GL-S450 configuration can be reviewed.
Projection
State the desired shaded depth and available mounting clearance. The final projection must be confirmed for the selected model configuration.
Installation Conditions
Include the mounting surface, height, doors or windows and any building details that may affect the assembly.
Size Confirmation
GL-S450 requires its own size confirmation. Send measurements or drawings for a model-specific review.
GL-S450 engineering details
GL-S450 Cassette & Folding Arm Construction
These supplied GL-S450 technical images show the folding-arm profiles, front bar and cassette sections, plus mounting relationships. Open any image to inspect the complete source frame without cropping its details.
Front Bar & Cassette Structure

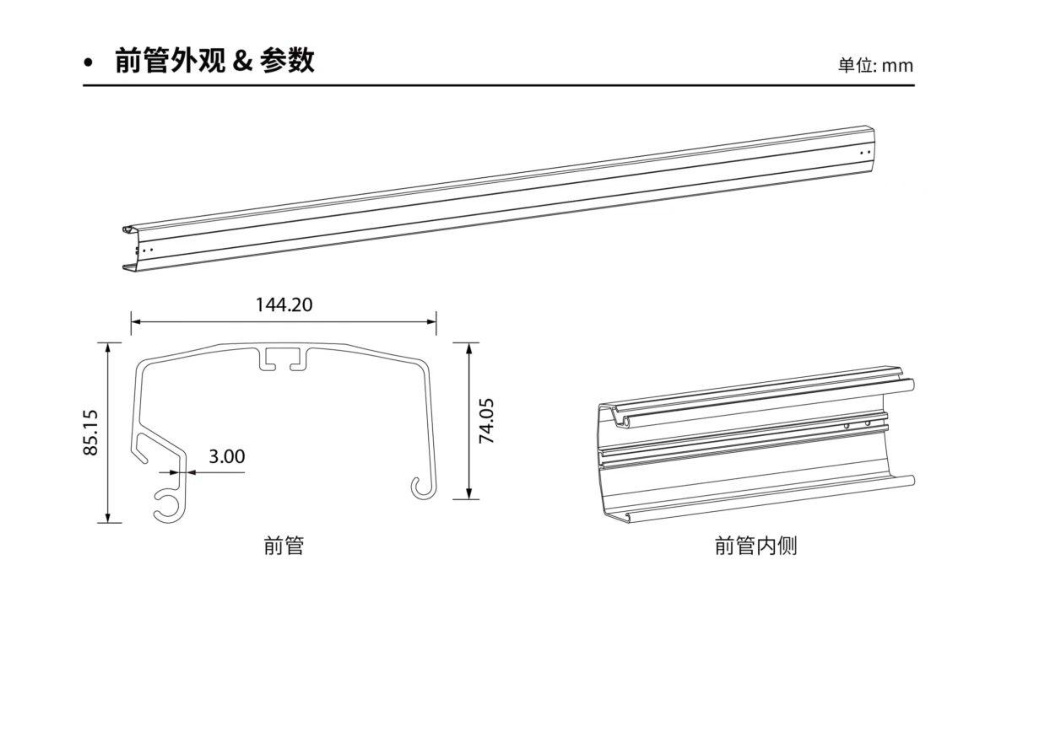

The front-bar profile and inner assembly view are reproduced from the supplied GL-S450 accessory drawing. Source: supplied PDF page 7.
Aluminum Extrusion Sections

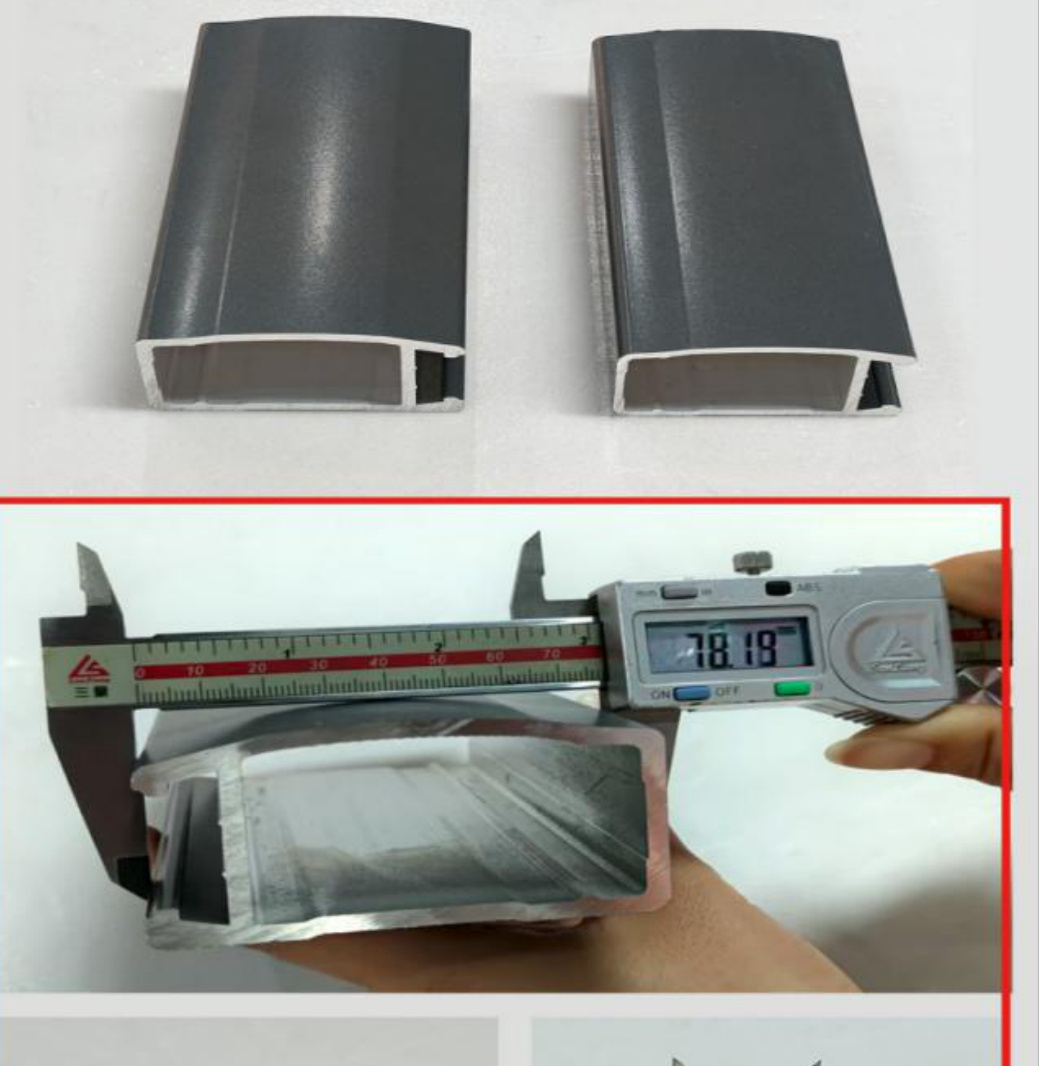

A supplied GL-S450 extrusion photograph showing aluminum sections and a measurement reference. Source: supplied PDF page 6.
Mounting & Assembly Diagram

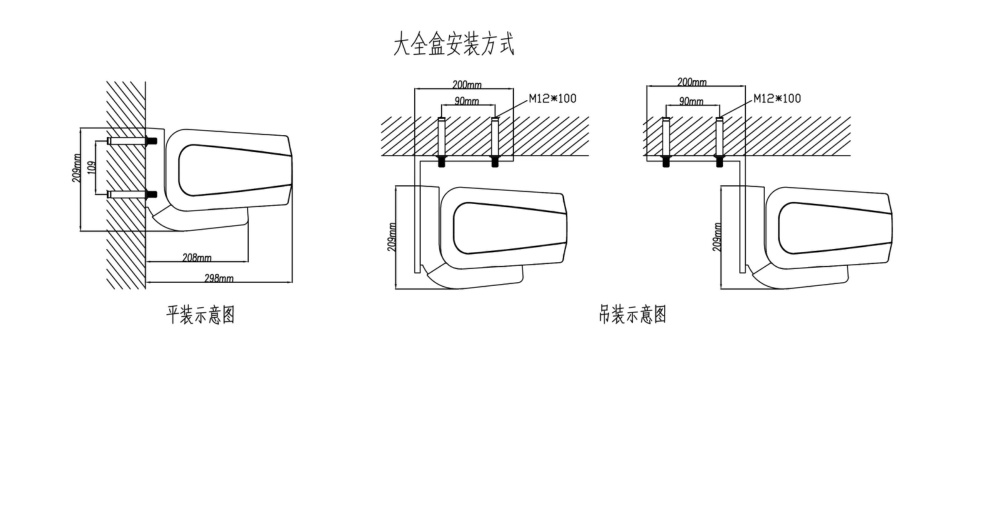

The supplied GL-S450 diagram shows mounting relationships for the assembly. It is a source reference, not a project-specific installation drawing. Source: supplied PDF page 8.
Fabric and frame finishes
Fabric & Frame Finish Options
Fabric collections and frame finishes for GL-S450 should be confirmed against the selected quotation configuration.
No GL-S450 fabric code or frame finish list is published in the reviewed source. Confirm available options for the quotation.
Confirm available GL-S450 fabric codes and frame finishes before ordering.
Motor and controls
Motorized Operation & Control Options
GL-S450 is presented as a motorized awning, but the reviewed source does not establish a specific motor brand, remote or control package.
Confirm the motorized operation, control package and any optional accessories for the selected GL-S450 configuration.
Smart-home integration, app or voice control, sensors, operating range and motor warranty are not stated in the reviewed GL-S450 material and are therefore not presented as standard features.
Applications
Where the GL-S450 May Be Used
Product FAQ
Common questions
What is the GL-S450 full cassette awning?
The GL-S450 is documented as a full cassette awning with aluminum folding-arm and front-bar profile sections. The supplied drawings show its component relationships and assembly references.
What structural information is available for GL-S450?
The supplied PDF documents large and small folding-arm sections, a front-bar section, cassette views, mounting diagrams and an exploded assembly. The profile dimensions are listed in the technical specification section.
What are the available GL-S450 sizes?
A verified GL-S450 width and projection matrix was not available in the reviewed source. Send the opening width and desired projection so the applicable configuration can be confirmed.
Can I request different fabrics or motor configurations?
Fabric selections, frame finishes, motor and control options can be reviewed for the selected configuration. Availability should be confirmed against the current GL-S450 quotation materials.
What information is needed for a GL-S450 quotation?
Provide the installation location, opening width, desired projection, mounting surface, quantity, fabric preference and any photos or drawings that show the building conditions.
Project inquiries
Looking for a Custom Motorized Retractable Awning?
Share your project details to review a suitable model and configuration. For homeowners, distributors, and commercial projects — tell us what you need.
